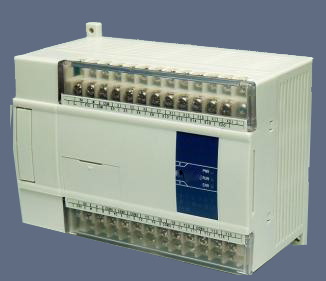

HV3 - PLC Hibrido
PLC with Digital Input / Digital Output and Analog Input / Analog Output
Integrated with logic control, analog input & output in one unit.
Digital input：9 points（NPN type optical couple to isolate).
Digital output：10 points（relay ).
Analog input：8 points（0～10 voltage ).
Analog output：2 points（0～10 voltage or 4～20mA).
Support 3 channels AB phase input.
Support 4 channels high speed count (20KHZ).
Simple configuration, compact appearance .
High cost performance, save more space .
PRODUCTS STANDARS
1. General Specifications.
|
Input voltage |
AC100V~240V |
|
Voltage range |
AC90V~265V |
|
Rated frequency |
50/60Hz |
|
Power consumption |
Less than 12W (TYP2.0W) |
|
Permit instantaneous power off |
Less than 20ms |
|
Power for sensor |
24VDC±10% , max 400mA |
|
Voltage endurance |
AC1000V-10MA 1 minute (between signal and groud) |
|
Insulated resistance |
DC500V-约10MΩ (between signal and groud) |
2. Function Specifications.
|
Item |
Analog input（AD） |
Analog output（DA） | |
|
Voltage input |
Voltage output |
Current output | |
|
Analog input range |
0~10V |
- | |
|
Max input range |
DC±18V |
- | |
|
Analog output range |
- |
DC0~10V（External load resistance 2KΩ~1MΩ） |
DC4~20mA (External load resistance is less than 500Ω） |
|
Digital input range |
- |
8bits （0~256） | |
|
Digital output range |
12 bits（0~4095） |
- | |
|
Resolving capability |
1/4095(12Bit); Converted data are stored with hex form in PLC (12Bit) |
1/256(8Bit); Converted data are stored with hex form in PLC（8Bit） | |
|
Integrated accuracy |
0.8% | ||
|
Convert speed |
15ms/1 channel |
2ms/1 channel | |
|
Power for analog |
DC24V±10%,100mA | ||
|
Installation |
Fixed with M3 screws or installed directly in DIN46277(35mm width) guide rail | ||
|
External dimensions |
139×110×93.3（cm） | ||
